Description

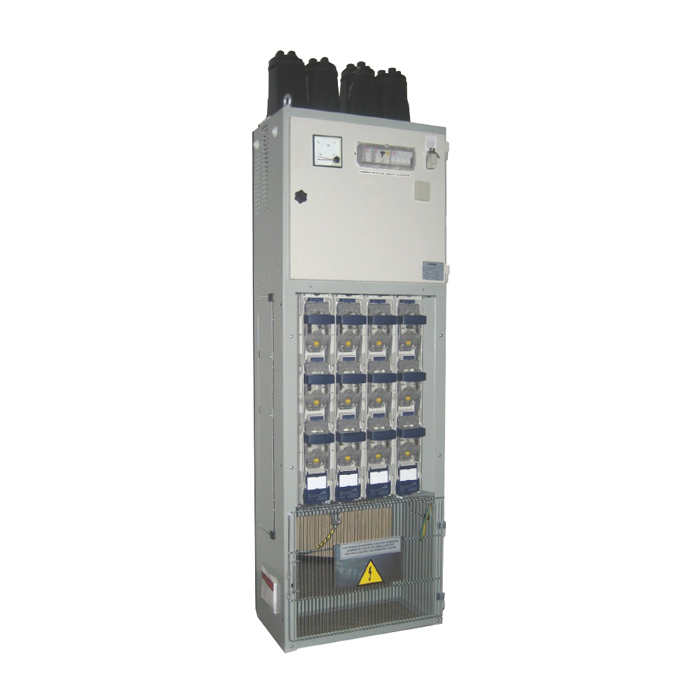

CBT-AM4 LV is an extension switchboard for CBT- AC4, it includes interconnection plates.
Specifications of the CBT-AM4:
Incoming | Lateral from the LV switchboard CBT-AC4 |
Rated current | 1600 A |
Installation | Indoor |
Enclosure | Metallic |
Operation | – |
Type of outgoings | BTVC TRIVER+* |
No. of outgoings | 4 |
Options | – |
No. of incoming cables | – |
Weight | 67 kg |
* Three pole vertical fuse switch TRIVER+.
No. of outgoings changes when combinating the range of fuse switches
TRIVER+ NH-00/1/2/3.
