Details

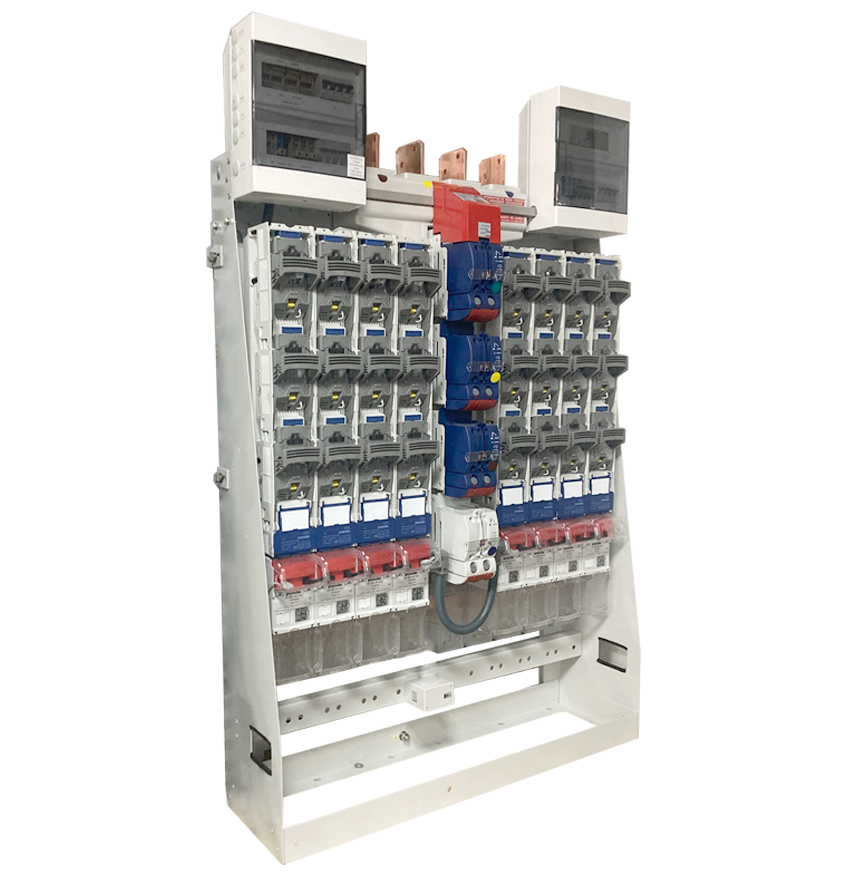

The aim of the CBTO ECOLAN LV Switchboard is to spread the LV supply from the distribution transformer into several independent feeders by means of fuse switches BTVC TRIVER+.
The main parts are: 3P+N vertical disconnector with upper incoming connection, an additional power supply (for emergency purposes), an insulating panel, fuse switches (BTVC TRIVER+) and auxiliary circuits (measurement, substation services, etc.). In case of floor fixing it comprises a metallic frame. The incoming connection is designed for 4 cables of 240 mm2 per phase and 3 cables of 240 mm2 for the neutral.
No. of outgoings changes when combinating the range of fuse switches TRIVER+ NH-00/1/2/3.
BTVC – TRIVER+ is the brand of our range of Vertical three-pole fuse switches that can be disconnected on Load.
Data Sheet
| Characteristics | Value |
|---|---|
| Incoming | Top |
| Rated current | 1600 A |
| Installation | Indoor |
| Enclosure | Metallic frame |
| Operation | 3P+N Single pole disconnector |
| Outgoing types | BTVC TRIVER + |
| No. of outgoings | 8 |
| Options | Auxiliary circuits |
| No. of incoming cables | 4 x 240 mm2 |
| Weight | 125 kg |
