Description

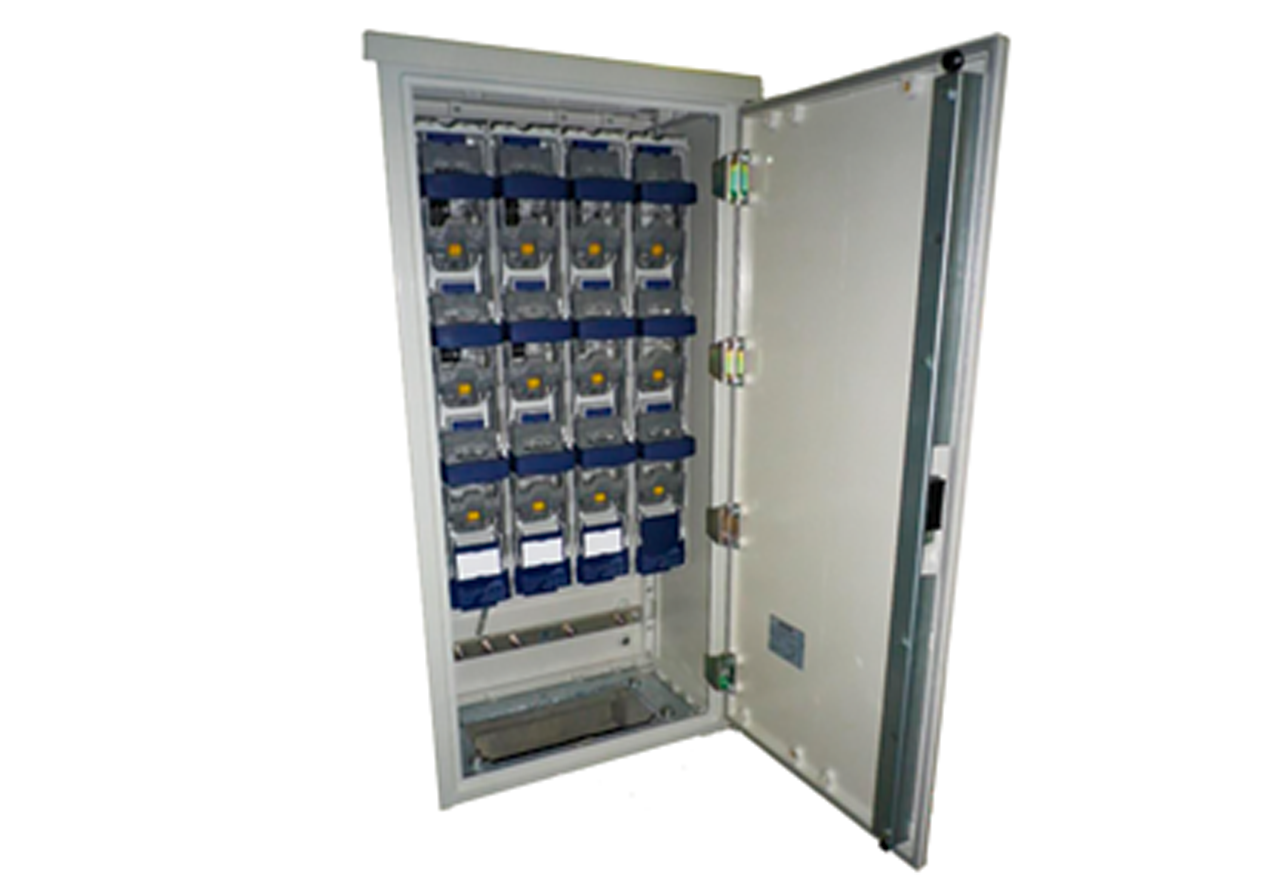

LV Distribution board with incoming and outgoing through the bottom part. Feeders by means.
Specifications:
| Incoming | By means of a three pole fuse switch or directly to busbar |
| Rated current | 630 A in standard (Contact us for further options) |
| Installation | Outdoor |
| Enclosure | Polyester PNT |
| Type of outgoings | BTVA / BTVC TRIVER+* |
| No. of outgoings | 3/5/7** |
| Options | Control Mounting frame |
| No. of incoming cables | 2 x 240 mm2 |
* BTVA/BTVC – Three pole vertical fuse switch TRIVER+.
No. of outgoings, changes, when combinating the range of fuse/rail switches TRIVER+ NH 00/1/2/3.
** Standard No. of outgoings. Please, contact us for other options.
