Description

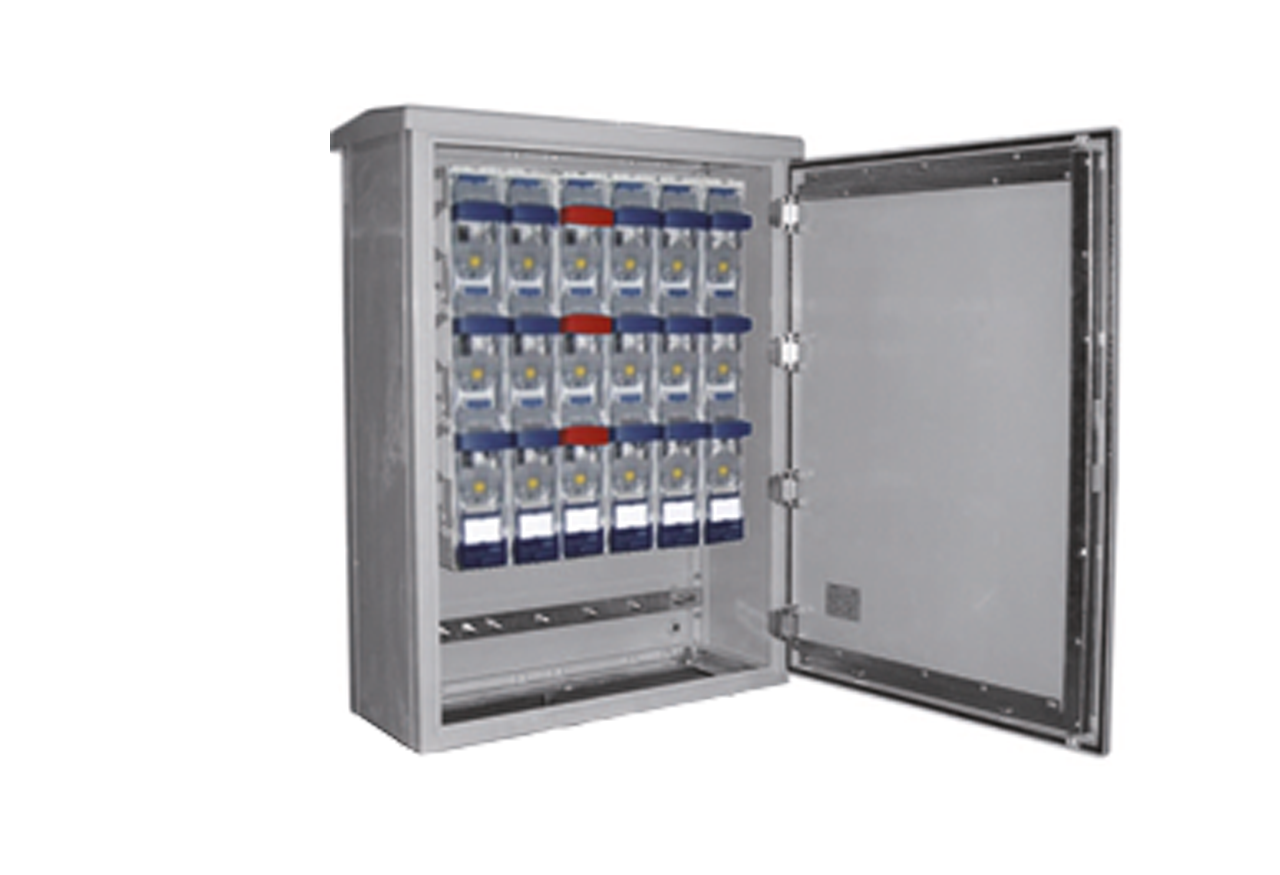

LV distribution board in PNT polyester enclosure with a coupled busbar to connect two different panels (incoming-net, outgoing-net / customers).
Specifications:
| Interconnection | By means of a disconnector BTVC-S (with solid link) |
| Incoming | By means of a fuse switch BTVC TRIVER+ |
| Rated current | 630 A in standard (Contact us for further options) |
| Installation | Outdoor |
| Enclosure | Polyester PNT |
| Outgoing types | BTVA / BTVC TRIVER+* |
| No. of outgoings | 4/6** |
| Options | Mounting frame |
| No. of incoming cables | 1 x 240 mm2 |
* BTVA/BTVC – Three pole vertical fuse switch TRIVER+.
No. of outgoings, changes, when combinating the range of fuse/rail switches TRIVER+ NH 00/1/2/3.
** Standard No. of outgoings. Please, contact us for other options.
